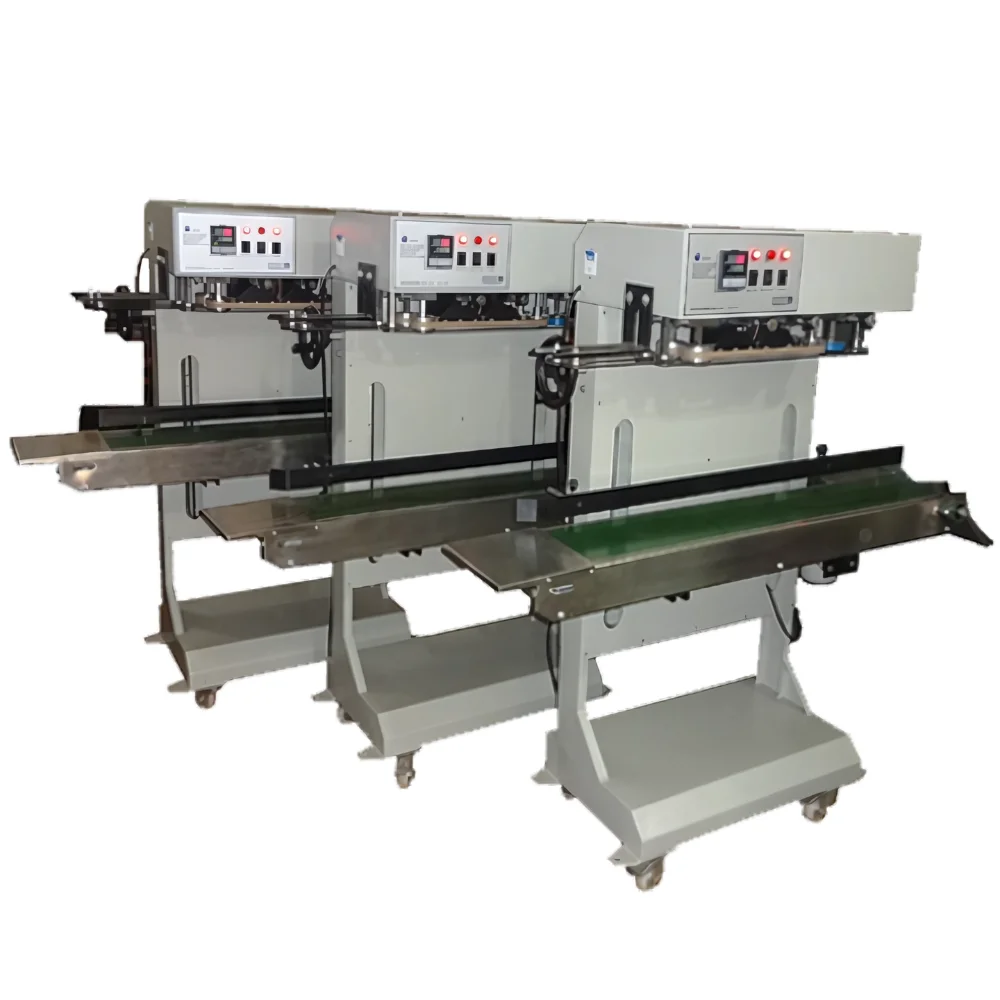

Heavy Duty Band Sealer
Description
Applications:
Wheat flour (atta), Seeds, Pesticides, Disposable vessels, Cement grouts, Tea, Coffee, Food products, Cosmetics
Description
Specfication
Band Sealer Heavy Duty for 50grms to 10 kgs
| Sealing Width | 5mm -12 mm (Any One) |
| Sealing Speed | 8 to 10 Meter/ Minute |
| Power Supply | Single phase 230 Volts / 50 Hz, /1 Phase +E |
| Heater | 230 volts SS Tubular Heaters/ 2 Nos |
| Temperature Controller | 0-300 degree Digital Temperature Controller |
| Motor | 1/4 HP AC Motor/ 2 nos |
| Heating Jaw | Brass Material for Better Bonding |
| Max Conveyor Load | 25 Kgs |
| Teflon Belt | 15mm(W) x 1000mm(L) |
| Conveyor Width | 250 mm |
| Conveyor Belt | 200 mm (W) x 3000 mm (L) |
| Conveyor Height | Easy Adjustable Jack System for Various Pouch Sizes |
| Body Material | MS with powder coated |
| Dimension (L x W x H) (mm) | 1500 (L) x 560 (W) x 1500 (H) |
| Type of Material | LD, PP , BOPP,ALU. Laminated Pouch Metallic Pouch |
| Type of Sealing | Diamond /Checkers Sealing (Co. Name Embossing Optional) |
| Approx. Weight | 180 kg |
